Introduction To the Gummy Candy Production Line:
The design of this series of gummy candy production line is scientific and reasonable, with a compact structure and a small footprint.
Adopting electromagnetic sugar, easy to operate, clean and environmentally friendly, and easy to maintain.
The entire line adopts PLC modular design, which has a high degree of automation and saves manpower.
The electronic components and pneumatic components of the entire line adopt international first-class brands, ensuring stable equipment operation and low energy consumption.
The vast majority of equipment materials on the entire line are made of stainless steel 304 or 316, ensuring compliance with food hygiene and safety standards.
The equipment has complete specifications and diverse functions, which can meet the different needs of various food and health product production and processing enterprises.
We can process and customize according to customer needs. By changing the candy mold, it can produce different shapes and specifications of gummy candy products, such as gummy bear candy, building block gummy candy, and other popular products.

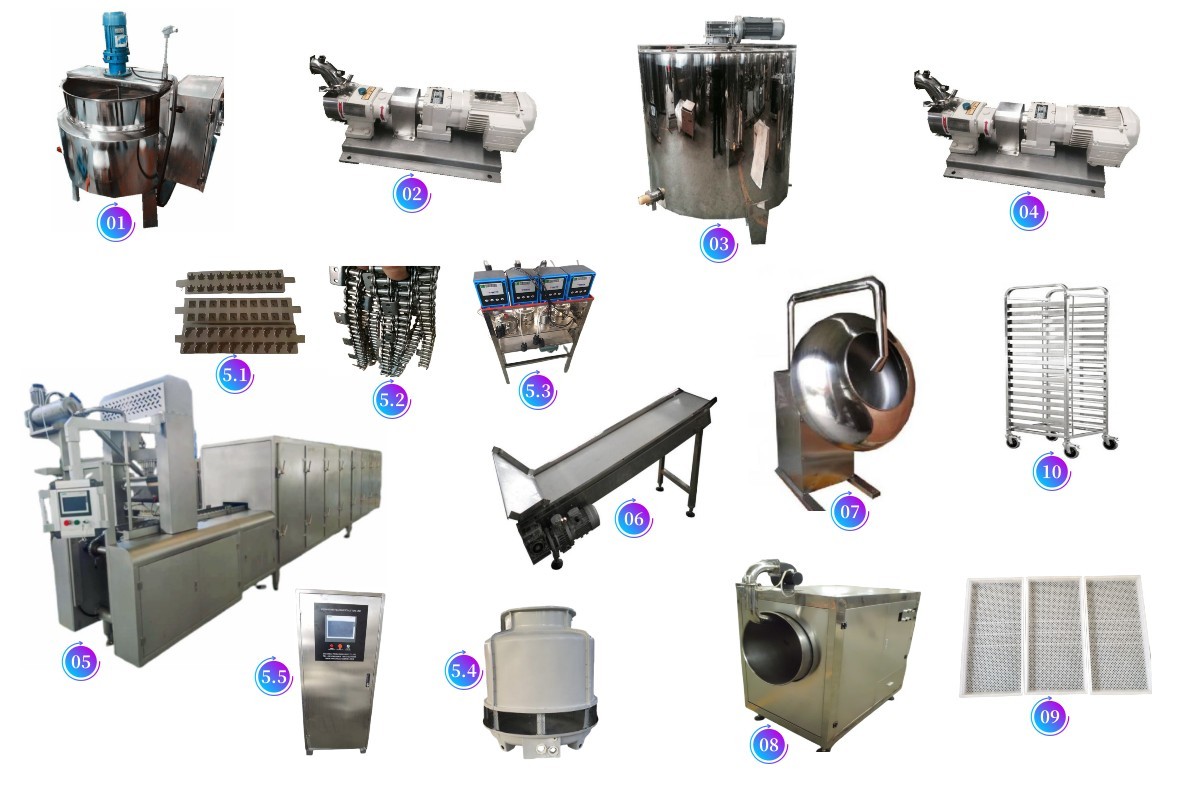

Gummy Candy Depositing Production Line Components:
01. Electromagnetic Melting Pot Egg
02. Rotor Pump
03. Syrup Storage Tank
04. Rotor Pump
05. Depositing Machine With Cooling Tunnel
5.1 Gummy Mould
5.2 SS304 Chains
5.3 Dosing Pumps
5.4 Water Cooling Tower
5.5 PLC Cabinet
06.Climbing Conveyor
07. Gummy Polishing Machine
08. Sugar Sanding Machine
09. Gummy Receiving Trays
10. Trolleys
Technical Parameters of Gummy Candy Depositing Production Line:
Machine Model |
PD80/150/300/450/600/1200/2000 |
|
Output Capacity |
80/150/300/450/600/1200/2000KG/H |
|
Depositing Speed |
45-50Drops/Minute |
|
Candy Weight |
2-20Grams/Pcs |
|
Candy Shape |
Customized |
|
Main Material |
SUS304 |
|
Heating Source |
Electricity or Steam Heating |
|
Installed Power |
Electric Heating |
60/80/120/160/220/260/280KW |
Steam Heating |
35/50/65/80/90/120/180KW |
|
Power Supply |
380V/220V/50Hz/60Hz/3PH |
|
Area Covered |
20-30*6-10*4M |
