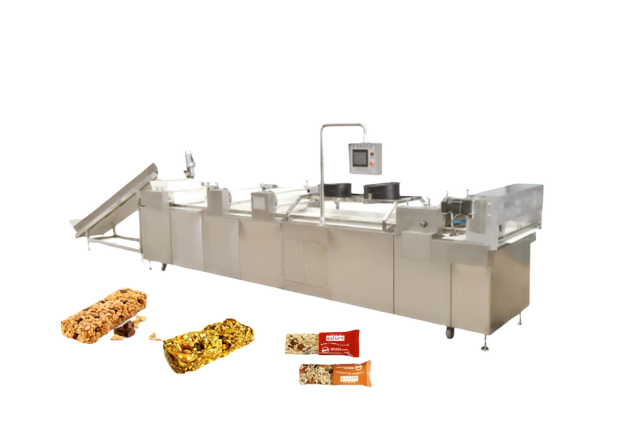

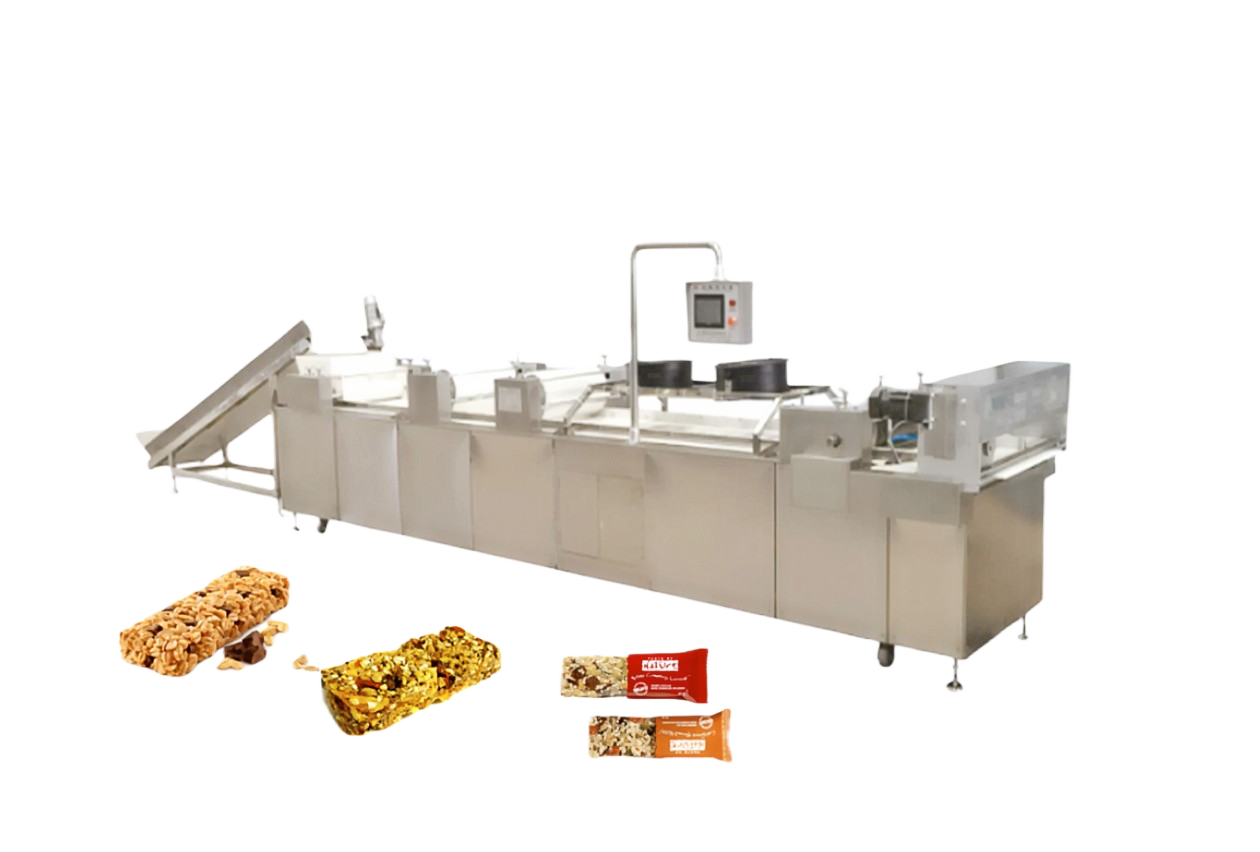

Introduction To Cereal Bar Production Line:
This series of Cereal Bar Production Lines has a compact structure, small footprint, diverse functions, and simple operation. It can be customized according to customer specific needs. By adjusting the formula and changing the oatmeal chocolate molds, it produce cereal bars with different shapes, specifications, and flavors.

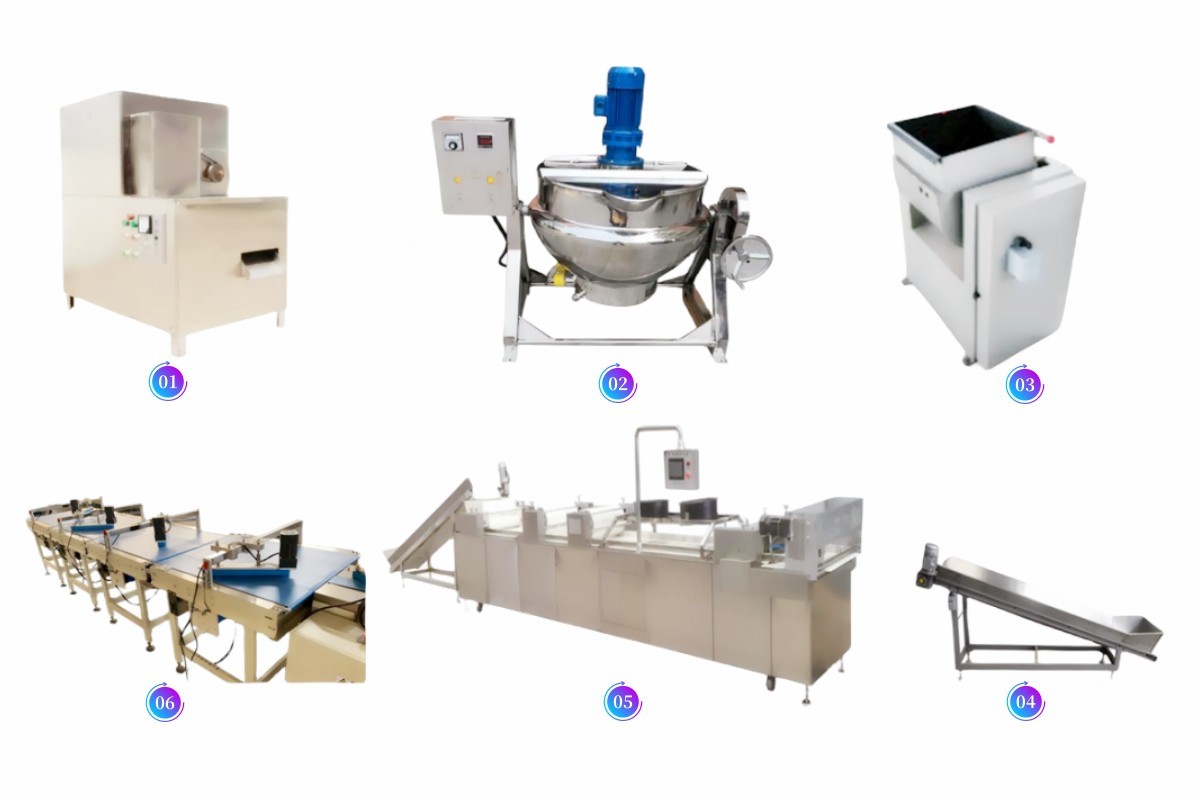

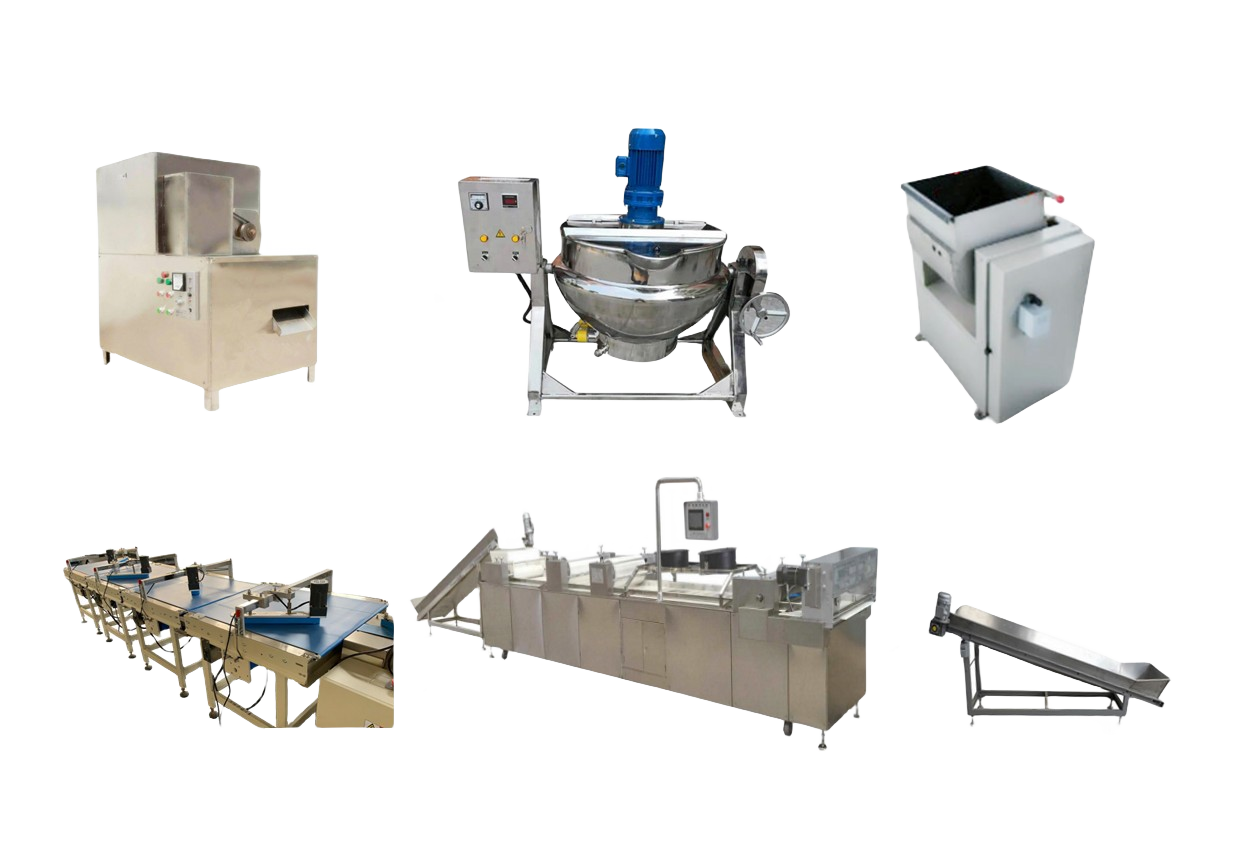

Cereal Bar Production Line Components:
01.Puffing Extruding Machine
02.Sugar Cooking Pot
03.Raw Material Mixer
04.Material Lifting Conveyor
05.Forming-Cooling-Conveying Unit
06.Automatic Stacking and Packing Line
Technical Parameters of Cereal Bar Production Line:
Items | PD400 | PD600 | PD800 | PD1000 | |
Production Capacity | 200-250KG/H | 350-400KG/H | 500-600KG/H | 700-800KG/H | |
Product Weight | 20-100Grams/Pcs | ||||
Product Size | Customized | ||||
Environment Temperature | 22-25℃ | ||||
Relative Humidity | 50%-55% | ||||
Cooling Power | 5P Cold Refrigerator | 8P Cold Refrigerator | 12P Cold Refrigerator | 15P Cold Refrigerator | |
Cooling Ways | Air Cooled | ||||
Voltage | 380V/50Hz | ||||
Total Power | 15KW | 20KW | 30KW | 60KW | |
Machine Weight | 2500KG | 3500KG | 5000KG | 7000 | |
Forming Machine Size | 6000×1200×1700MM | 8000×1400×1700MM | 15000×1600×1700MM | 18000×1800×1700MM |
